Icom Marine Radios

IC-M423, IC-M424, IC-M410BB, IC-M506, IC-M510BB and more

We have a ready made kit that connects any of the above Icom radios to a Mimer Network Interface. This gives remote capability of audio and PTT as well as channel change and more.

As with all other SoftRadio you can operate several radios from one dispatcher and each radio can be operated from several dispatchers. Each dispatcher can also use other types of radios in a mix.

Functions

Through separate keys you can set the squelch level, high/low power, Dual watch on/off and there is also a quick key to CH16.

The radios built in functions for DSC can not be used. For those who need DSC there is an option for Mimer SoftRadio called Marine Calls.

All connections are made from the radios rear connector otherwise used for the Commandmic HM-195 (HM-195B/SW, HM-195GB/GW). The radio can simultaneusly be local controlled as a standard radio with its control head, microphone and speaker.

Network Interface M423/424 & M400BB: 3009/31
Cable Kit: 3126/02

NetworkInterface M410BB & M510BB: 3009/69
Cable Kit: 3126/02

NetworkInterface M506: 3009/46
Cable Kit: 3126

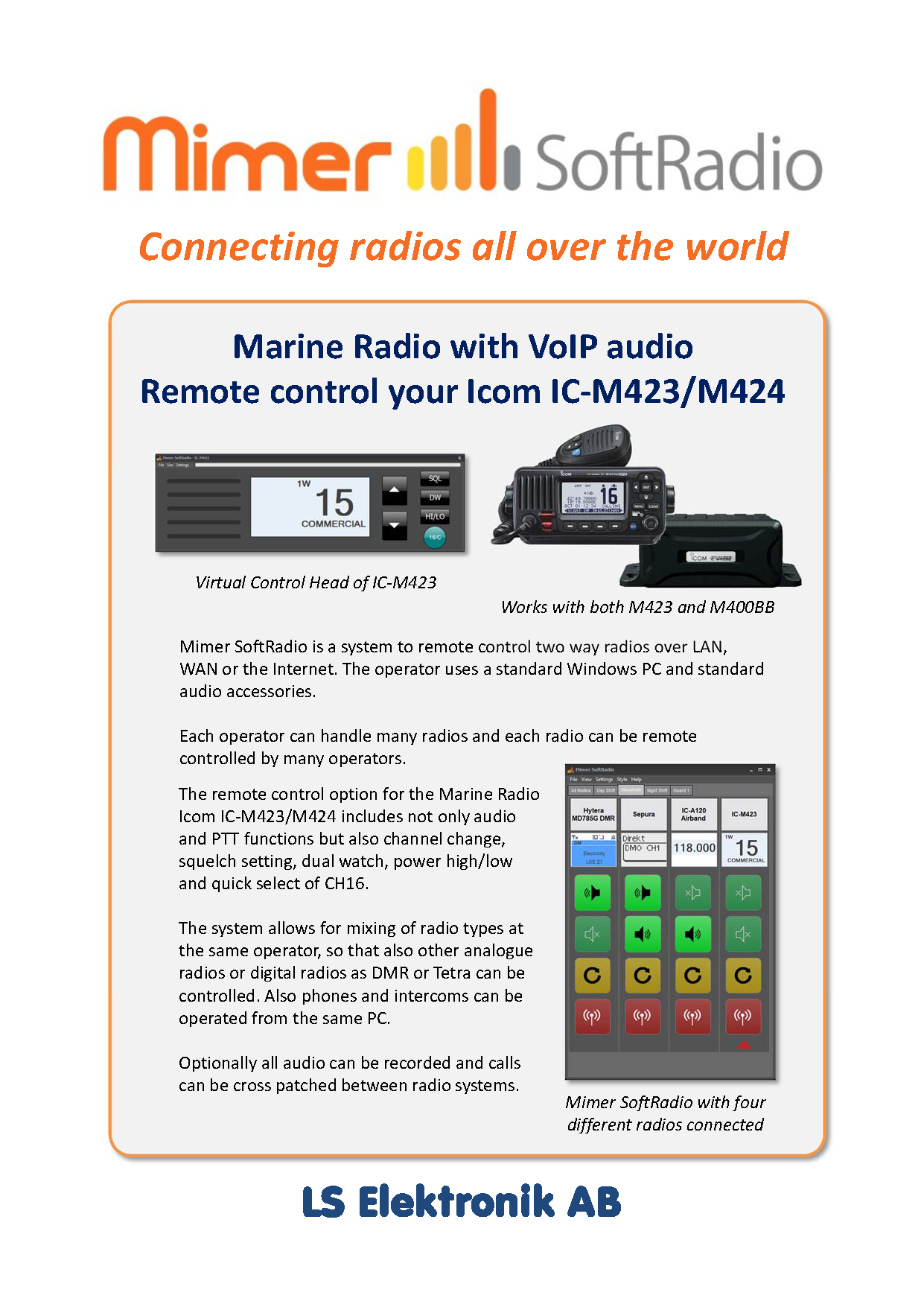

36EA brochure can be found on the download page

Examples of use:

  • Local use when several dispatchers want to share one radio
  • Remote use where a dispatcher at one location want to talk to radio users at a different location
  • Often used on USV´s from an operator onshore
  • CrossPatch between Marine radio channels and other two way radios, like analogue, IDAS, DMR, Tetra or MPT

Read more about different use on the marine user pages.

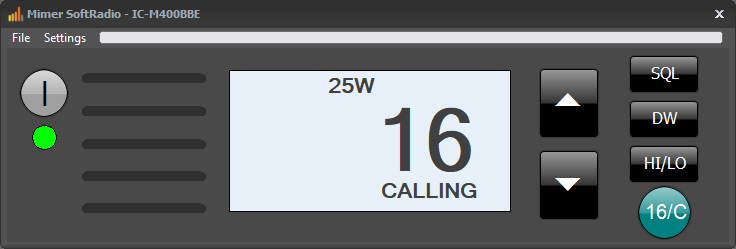

M423-10-2

Set to channel 16

M423-12-4

Set to channel 15 and
Dual Watch active

M423-11-1

During squelch setting

Supported Radio Models:
  • IC-M423/M423G/M423GE
  • IC-M424/M424G/M424GE
  • IC-M400BB / M400BBE
  • IC-M410BB / M410BBE
  • IC-M506/M506G/M506GE

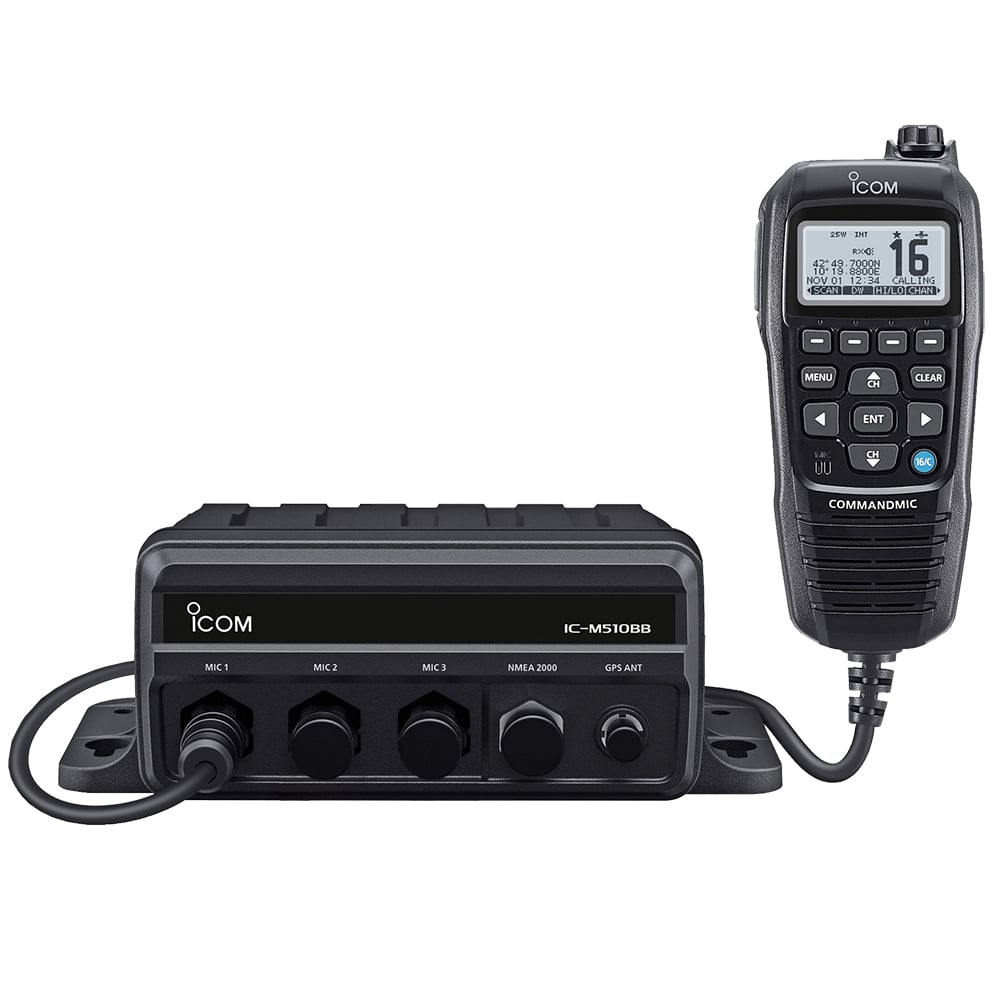

  • IC-M510BB /M510BBE

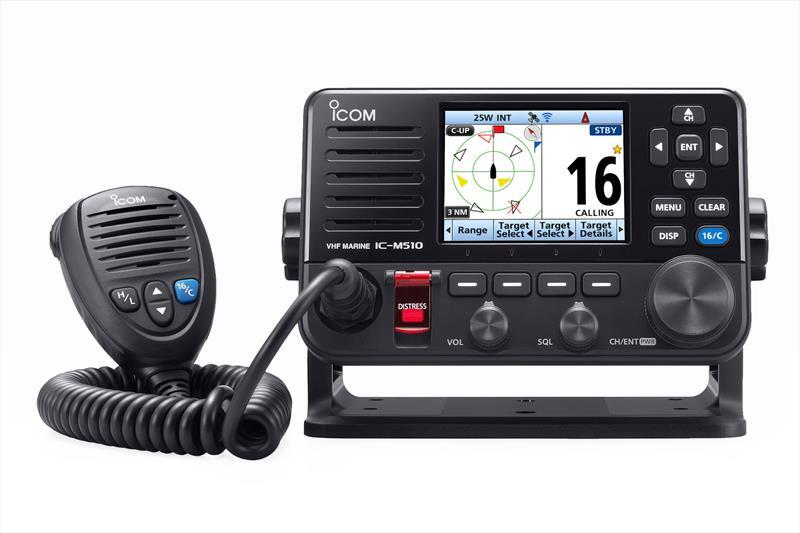

  • IC-M510EVO

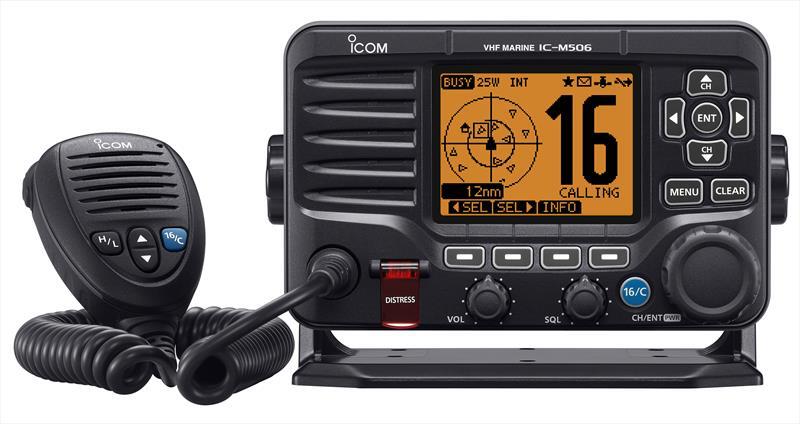

M506
IC-M506
ICM4232-150x84
IC-M423/M424
M400BB-e1594119321144-150x110
IC-M400BB

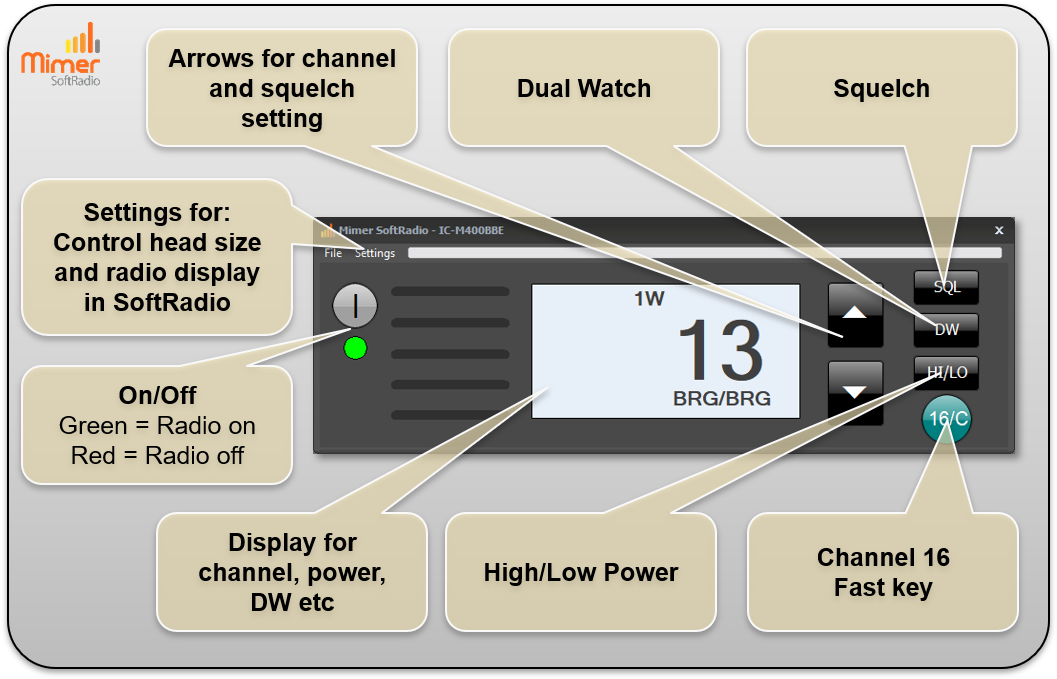

VCH-M423
Virtual Control Head Functions

Please also see the page about Mimer SoftLine for Icom Marineradios.

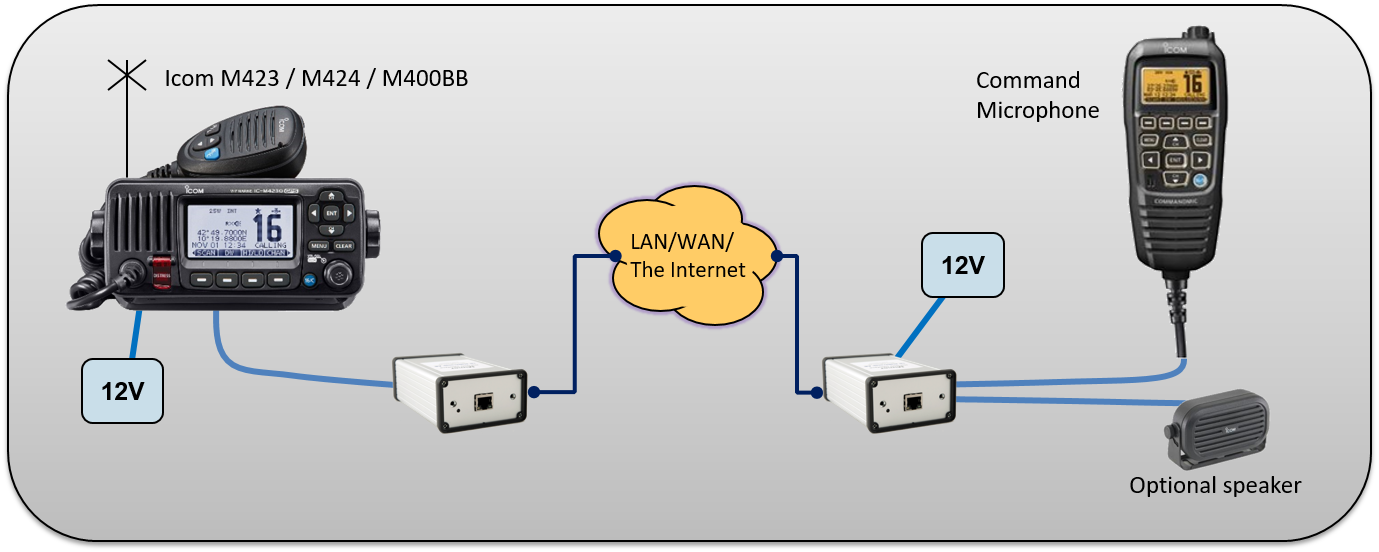

With Mimer SoftLine you can remote control the radio with a standard Command Microphone over the Internet. Instead of using a PC for the operator.

System Examples:

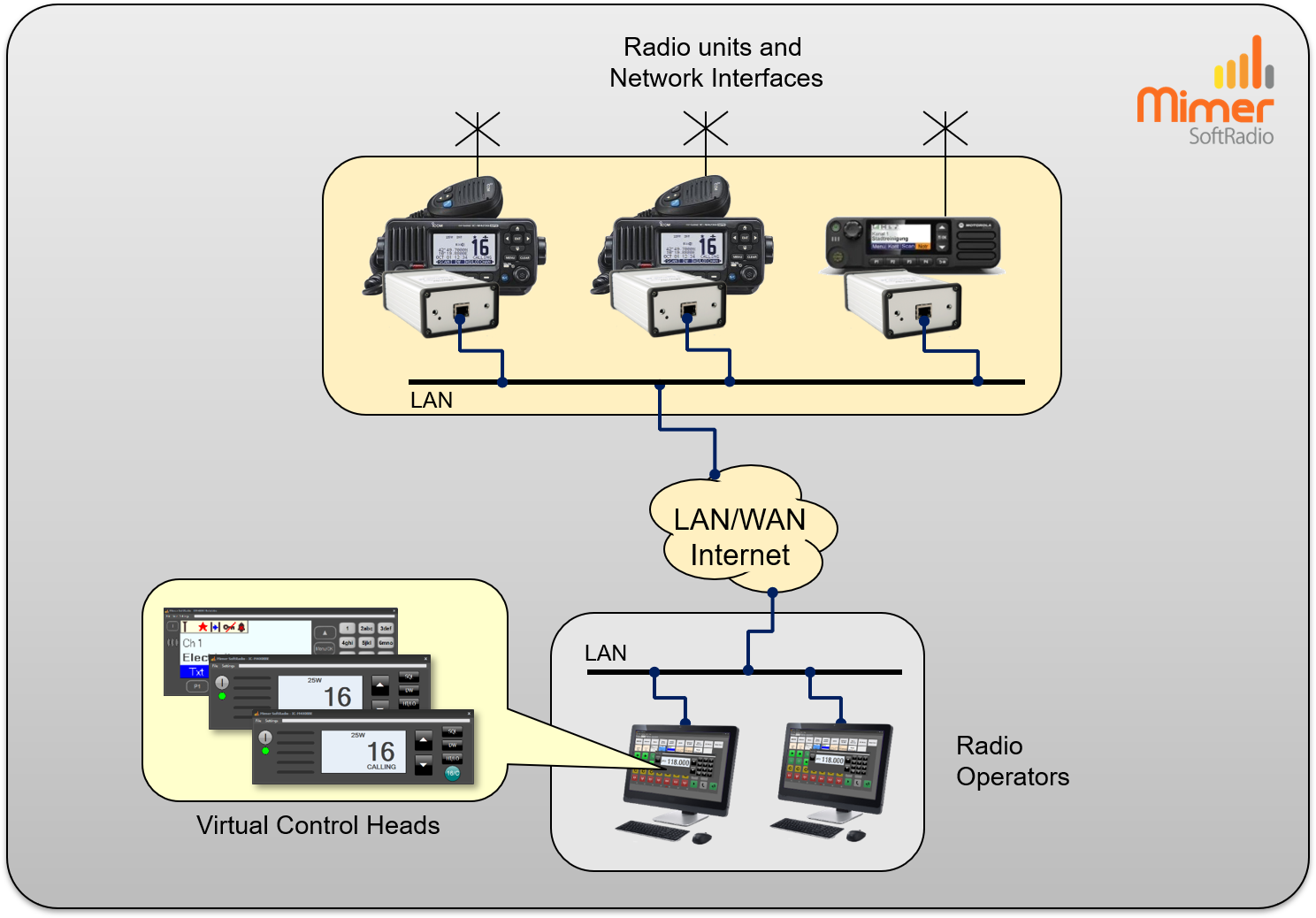

519Example with two marine radios and one DMR radio remote controlled from two operator PC´s.

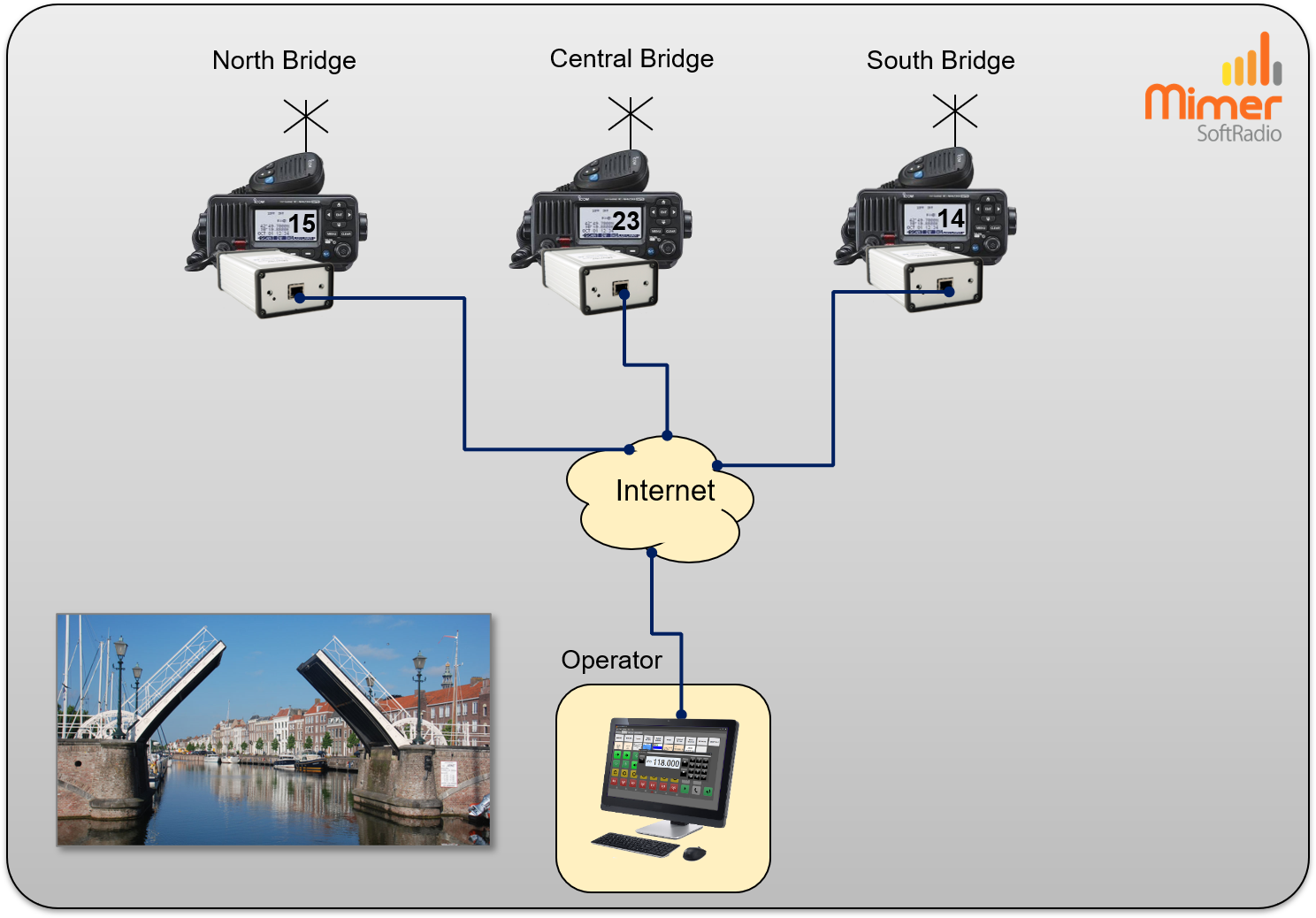

515Example with three radios at different bridges, along a water way, controlled from one operator position.

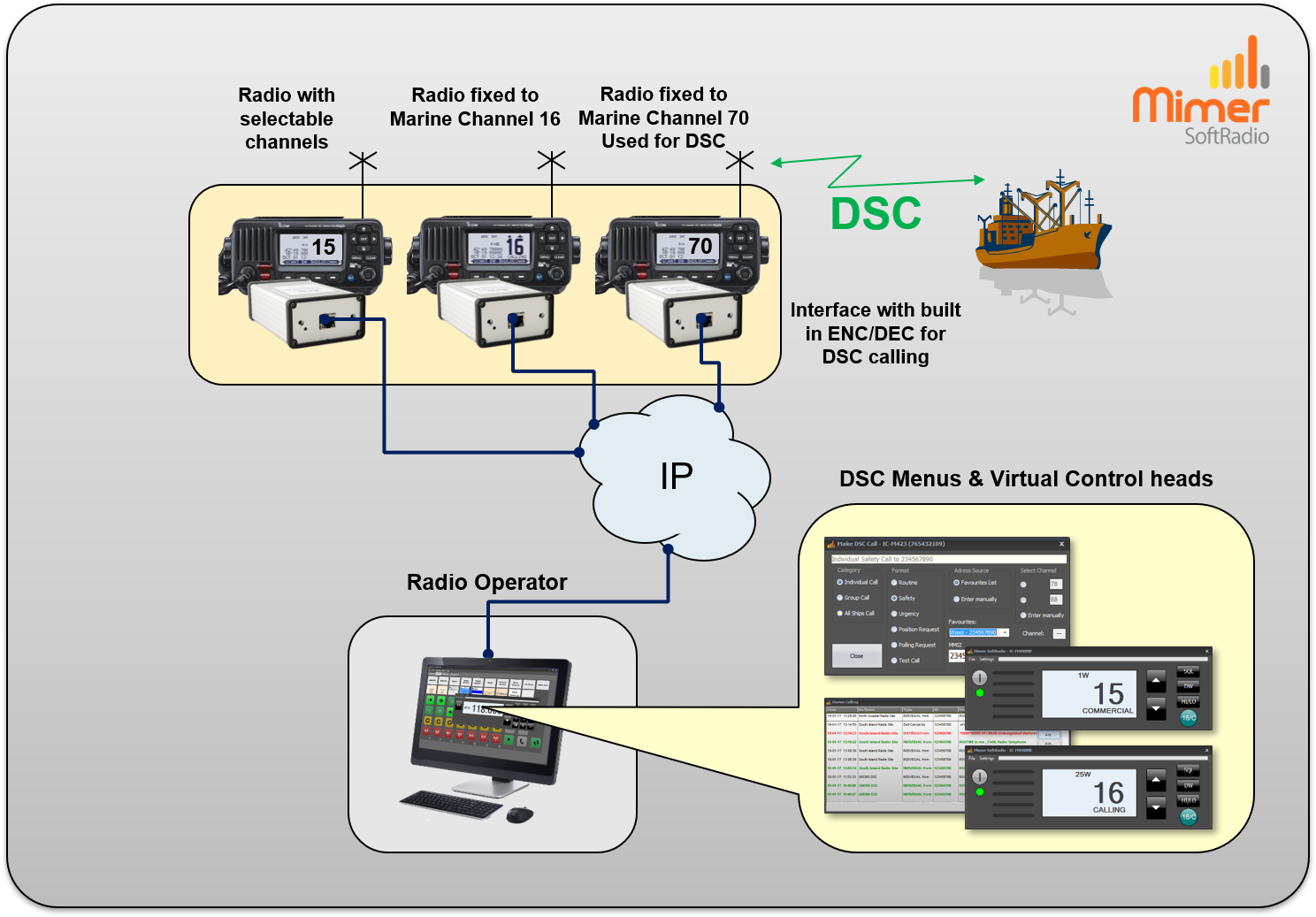

520Three marine radios set up with one fixed channel CH16, one multichannel radio and one fixed CH70  radio used for DSC.

The DSC radio is hidden from the operator and only used in the background.

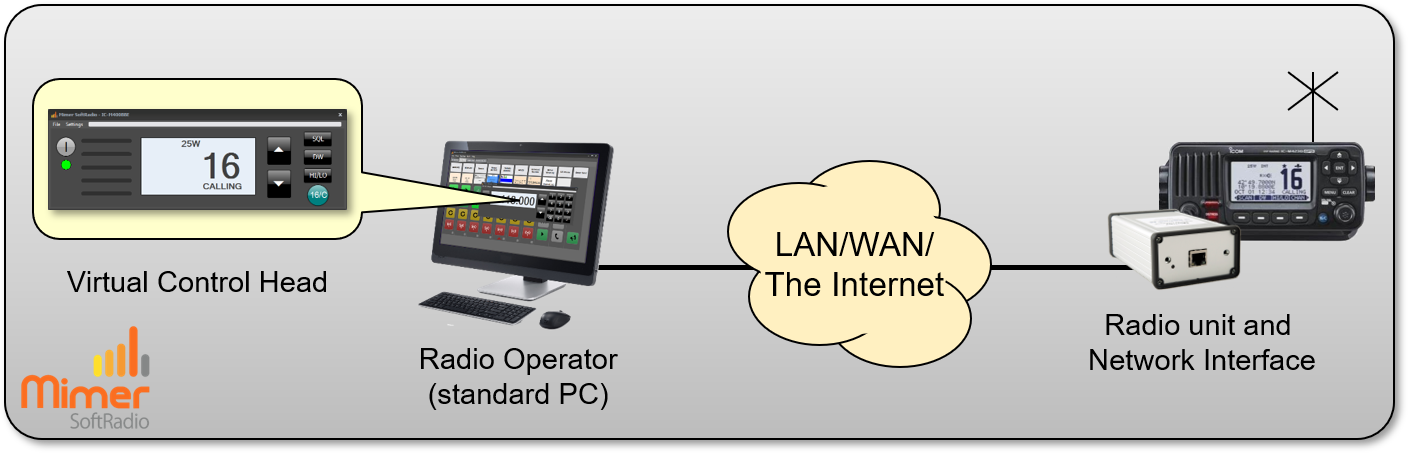

518Example with one radio remote controlled from one operator PC.
