Mimer Train Antenna

The Mimer Train Antenna is a specialized, undercarriage-mounted unit designed to facilitate reliable communication between the train and trackside systems.

Data communication

In many subways and light rail trains, systems with inductive communication from the vehicle to the ground are used to keep track of where each train is.

At LSE we have developed an antenna unit to be mounted under the train, to be used in such systems where it works together with a loop antenna placed between the rails of the tracks.

These train antennas are designed to work in the rough train environments and are highly resistant to heat, cold, moisture and vibration.

Data of the antenna

  • Center frequency: 56kHz
  • Dimensions: 316x130x120mm
  • Weight: 7,3Kg
  • Connection: Fixed cable RG22B/U

Custom Design

The antenna can be tailor-made to fit with the needed installation’s and can be adapted for the particular frequency band of the system.

Different mounting kits can be developed to fit the antenna according to the needs of a particular train type.

420C812A-BA70-45D9-AA68-2EE81073EFF5
Mimer Train Antenna
42860013-37BD-4DCA-A645-90D1B40CD037
Antenna unit under a train

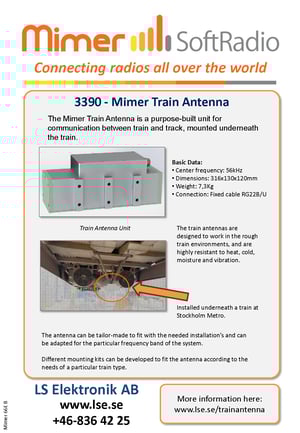

Available Brochure for the Mimer Train Antenna
