Sailor 6390 - Navtex

For the Sailor Navtex receiver 6390 we have a kit that gives a full remote control.

You can remote control your receiver from “anywhere” in the world using the Internet or other IP connection. All the receivers functions, are remote controlled.

Functions

One or many SoftRadio operators can monitor one or more Navtex units. All messages will be listed  and can be read in the same way as from the units front panel.

Messages are marked with an open or  closed envelope, depending on read or unread. Urgent messages and alarms are marked and also audio signalled when applicable.

Examples of use:

  • Local use when several dispatchers want to share one receiver
  • Remote use where a dispatcher at one location want to listen to Navtex messages in another place
  • Typical use are onboard unmanned ships.
  • Also works over satellite IP systems

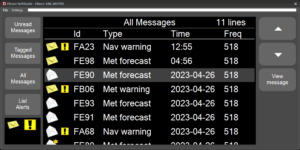

Navtex1-300x150Navtex main menu

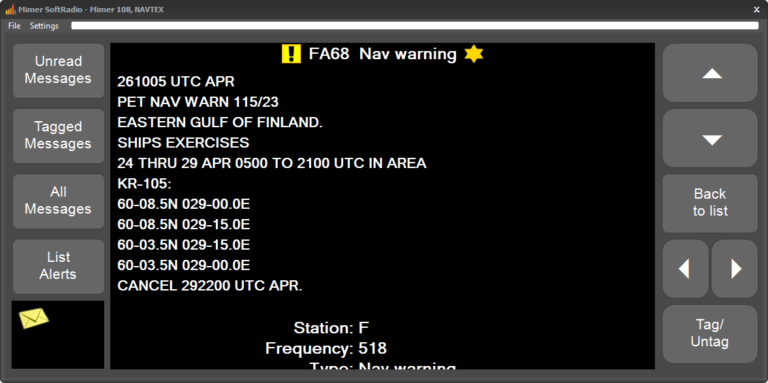

Navtex4-768x383Reading a message

VCH-Navtex-1024x658Functions on the main menu

Supported Radio Model:

Sailor 6390

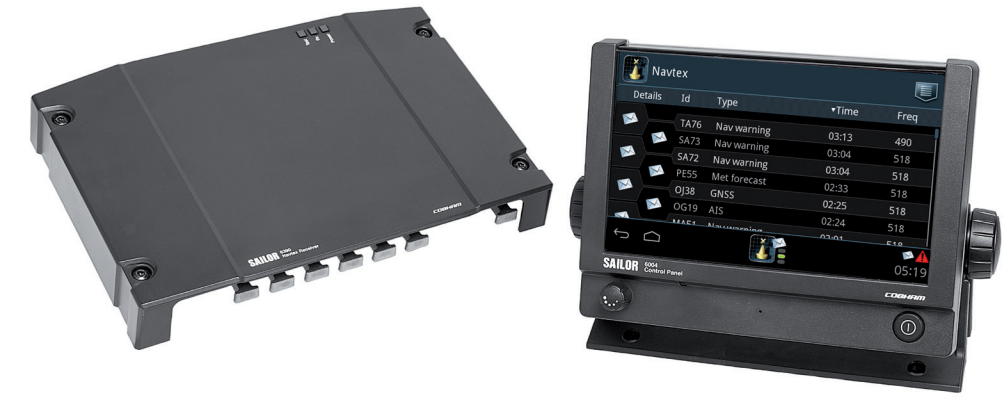

reciever-unit-6390
The receiver unit 6390 + the display 6004 is together called 6391

System examples:

593-1024x329One Navtex remote controlled

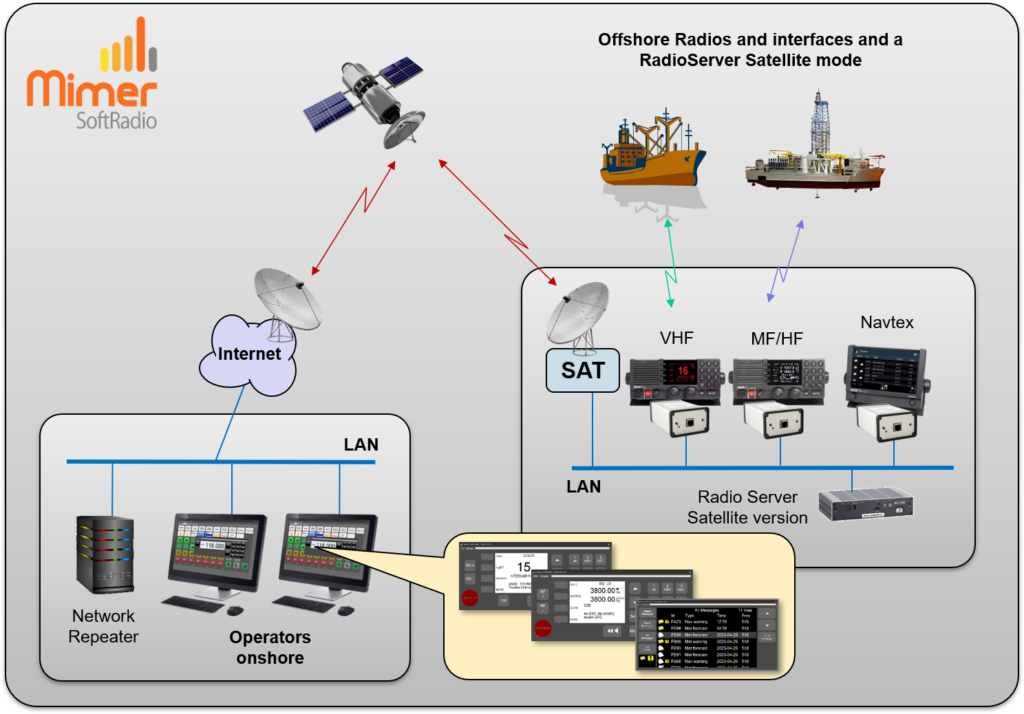

594-1024x714-1Radios and Navtex remote controlled over satellite

595-1024x714Several radio sites connected to one operator site
