Kenwood NX5000-Series

We have a kit for remote control of the NX5000-series radios. This will give the dispatcher a Virtual Control Head where he can remote the basic functionality of the radio.

This means that you can use the radio remotely from “anywhere” in the world. Using the Internet or other IP for the remote connection.

Functionality

Unfortunally the radios interface will not let us remote control the full functionality of the radio. We are hoping for an upgrade of this at a later stage.

Apart from the obvious audio and PTT, the following functions are available:

  • Channel change
  • Zone change
  • Scan on/off
  • Select channels to scan list
  • Decode of private calls and emergencys
  • Display of transmitting radio ID

As with all other SoftRadio you can operate several radios from one dispatcher and each radio can be operated from several dispatchers. Each dispatcher can also use other types of radios in a mix.

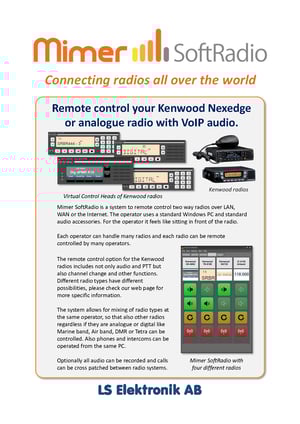

32EA brochure can be found on the download page

Examples of use:

  • Local use when several dispatchers wants to share one radio
  • Remote use where a dispatcher at one location wants to talk to radio users at a different location
  • Cross patch between analogue radio and other two way radio, like Nexedge, DMR, Tetra or MPT
  • Cross patch between VHF/UHF
NX5800-12-1
Receive mode talk group call
NX5800-10-1
Receive mode Private call
NX5800-9-2
Transmitting on a Talk group
NX5800-11-1
Emergency call received

System Examples

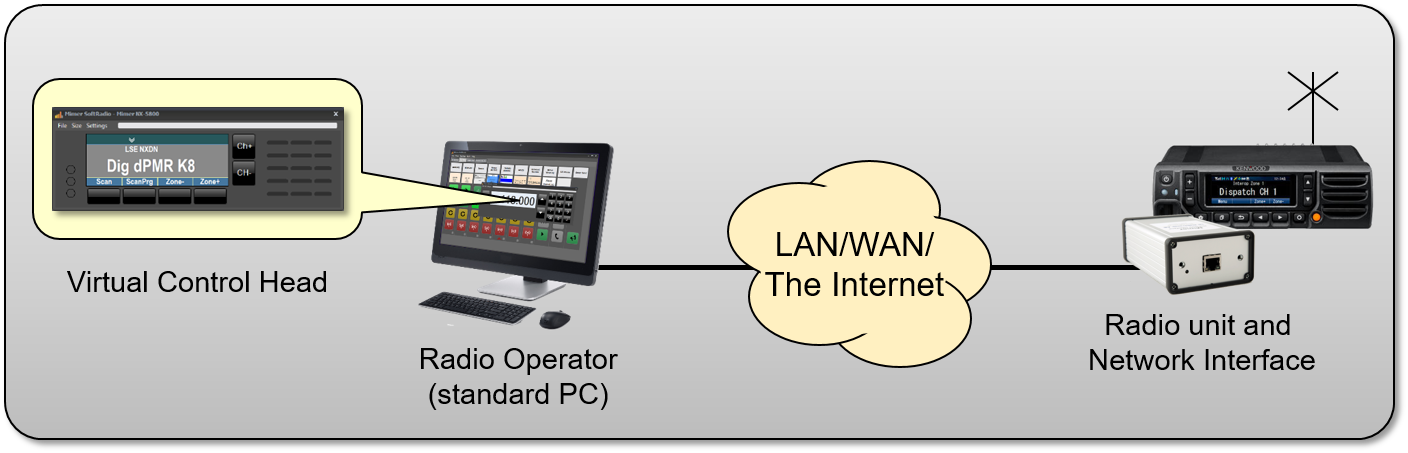

Bild306One dispatcher controlling one radio

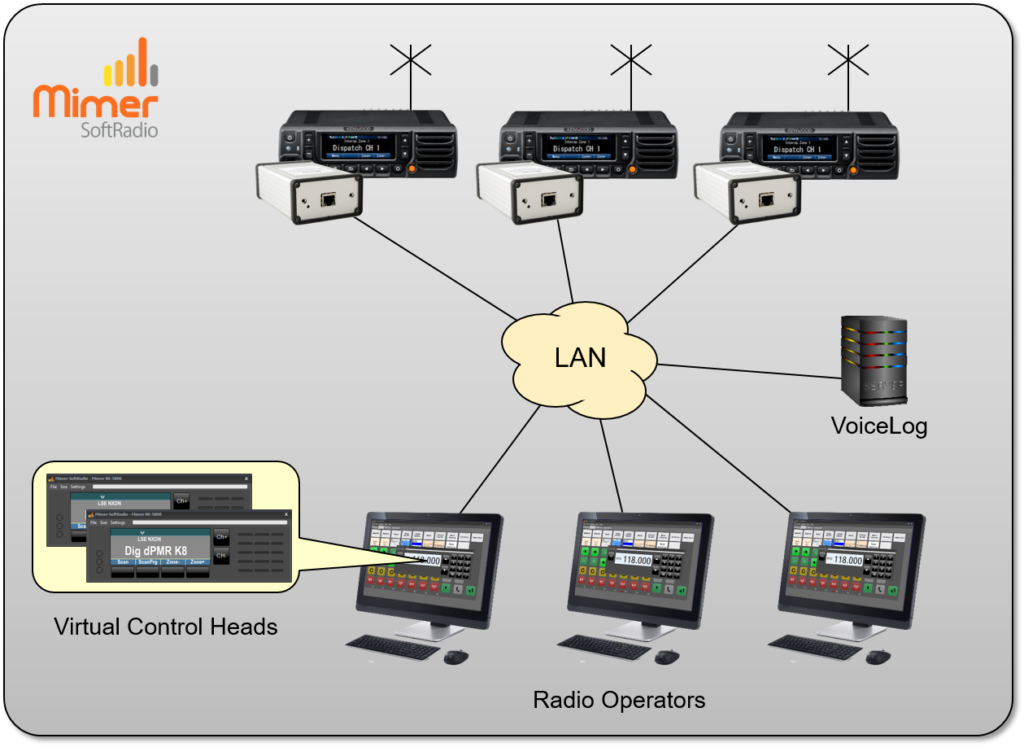

Bild305-1024x747Three dispatchers working with three radios and recording audio on a VoiceLog

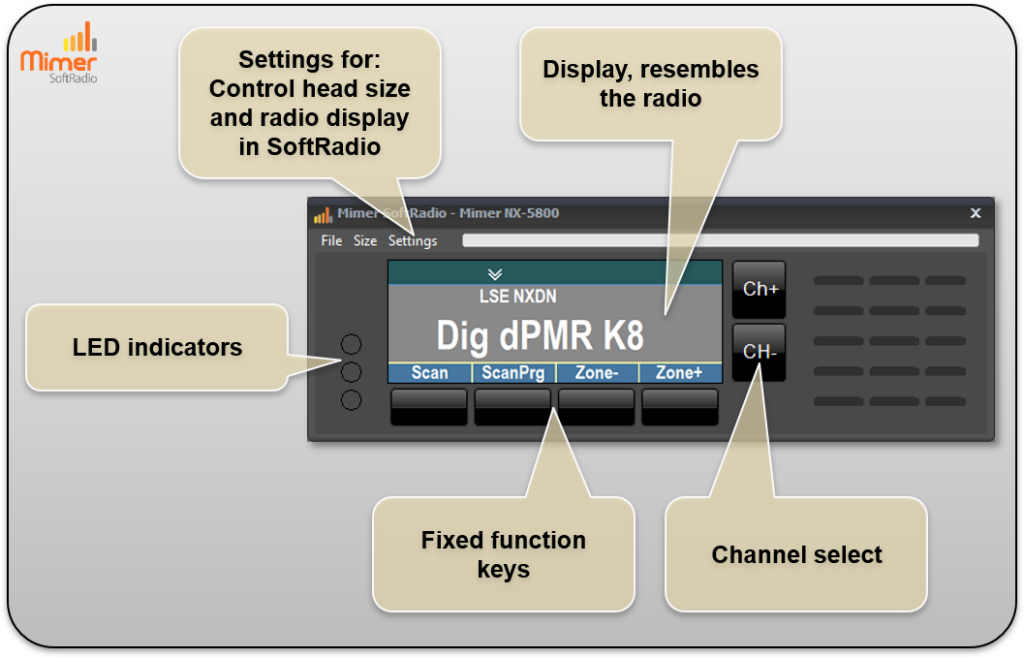

VCH-NX5800-1024x658Controls on the Virtual Control Head
