MotoTrbo Portables

With Mimer SoftRadio you can remote control your MotoTrbo Portables over a LAN or over the Internet.

This means that you can connect your portable radios together with your other analogue or digital standard radios at the same operator PC. The operator can work in parallel with all types of radios and also make cross patches between the systems.

Functions

The Network Interface LE gives remote capability of audio and PTT (No virtual control head).

In order to remote control more than one talk group you need to set up several radios in parallel, each with its own network interface. You can then monitor all groups in parallel.

All connections are made from the radios side connector.
Suitable Network Interface is 3130, and cable kit 3260.

Similar solutions can be made both for the Wave-Radio (TLK100), the MotoTrbo radio (SL1600) and for other Motorola portable radios with the round side connector. Please ask!

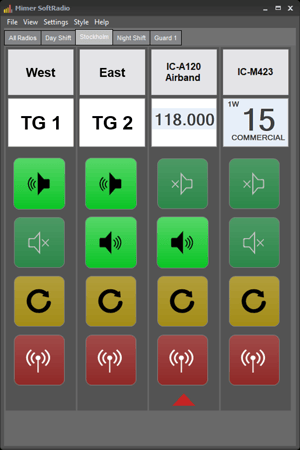

4-Radios-TG-Marine-AirSoftRadio showing two Wave-Radios on different talk groups together with an Airband Radio and a Marine Radio.

Examples of use:

  • When several dispatchers wants to share one radio.
  • When one or more dispatchers needs to monitor more than one talkgroup in the IP-Radio system simoultaneusly.
  • When the dispatcher needs to control several types of radios from the same application.
  • CrossPatch between LTE-Radio talkgroups and standard two way radios, like analogue, Marine VHF, Airband VHF, DMR, Tetra or MPT.

Supported Radio Models:

SL1600

SL2600

System Examples:

Bild375-1024x667

Two portable radios and one Marine Radio remote controlled from two dispatcher PC´s.

Both dispatchers can monitor both radios.

567-1024x667SoftRadio dispatchers connected both to a portable radio and to a fixed mobile radio.

The dispatchers can set up a cross patch between the two systems. So that they work as one large talk group.
