SoftRadio - Setup
Mimer SoftRadio is a system that gives you the possibility to remote control your two-way radio over a LAN, a WAN or over the Internet. It also lets you mix and match different brands and types of radios as well as phones and intercom.
From this page you can navigate to the needed information to do your setup of the SoftRadio system.
It is important to follow the instructions, otherwise the system might not work as intended or even not work at all.
Setup instructions for X-Link are found here!
Setting up a SoftLine system
A SoftLine system is basically the same as a SoftRadio system. The difference is that you don´t use a PC at the operator, you have network interfaces at both ends.
Please use the same pages as with SoftRadio to download the specific instructions.
Mimer SoftLine with microphone
Setting up SoftRadio software and options
You need to do some basic settings to get the system setup on your local LAN or over the Internet.
If you have a large system there might also be servers that needs to be setup.
And finaly when all is working, you might want to do some fine tuning of the settings in each operator PC to get as much performance as possible.
On this web page you will find all documents needed as downloadable PDF´s.
The first document up to the top left is the basic an most important to use.
Also see the menu bar at the top of every page. Under “Mimer SoftRadio”, you have the headlines “Technical and Setup”, with a lot of setup tips, as well as the “SoftRadio FAQ”, with many answers to your questions.
Example of an airport system
Exampel of Virtual Control Head for the Motorola Tetra terminal MTM5400.
Setting up the correct IP and ID in the interface
To work in your IP environment, the network interface needs to be given the correct IP address etc. It also needs an ID number in the SoftRadio system. This is done from the software “Mimer Interface Setup” that is delivered and installed together with the SoftRadio operator software.
The latest version of Mimer Interface Setup can also be downloaded directly from the key below.
Latest version is 2.1.0.0

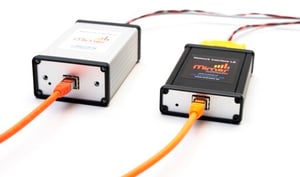

Mimer Network Interfaces
Setting up the interface and the connected radio
The Network Interface is delivered to work together with a pre defined radio model. There is seldom any settings needed in the interface itself when it comes to the radio model. Radios on the other hand, often needs to be setup in the correct way to work with the interfaces.
Instructions for each type of interface, cable kit and each radio model are sorted after the number of the cable kit that connects the interface and the radio.
Please find your cable number through the links below.
SoftRadio with three radios connected.
